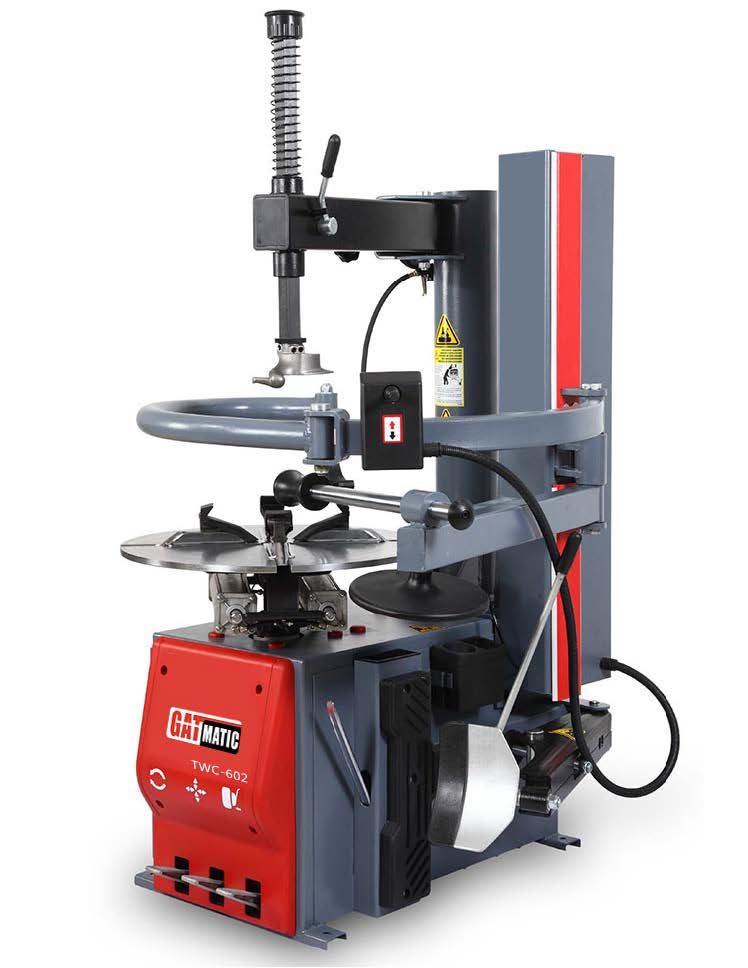

Tire changer features a powerful motor (1.1 kW, 0.75 kW, or 0.55 kW) and supports multiple power supplies. It handles wheels up to 960 mm in diameter and 280 mm in width, with clamping ranges of 10″-18″ and 12″-21″. Operating at 6 RPM with a bead breaker force of 2500 kg, it requires 8-10 bar air pressure and has a noise level under 70 dB. It weighs 211 kg and comes in a package size of 970 x 870 x 950 mm.
| Motor Power | 1.1 kW / 0.75 kW / 0.55 kW |
| Power Supply | 110V / 220V / 240V / 380V / 415V |
| Max. Wheel Diameter | 38° (960 mm) |
| Max. Wheel Width | 11″ (280 mm) |
| Outside Clamping | 10″ – 18″ |
| Inside Clamping | 12″ – 21″ |
| Air Requirement | 8 – 10 bar |
| Rotation Speed | 6 RPM |
| Bead Breaker Force | 2500 kg |
| Noise Level | <70 dB |
| Weight | 211 kg |
| Package Size | 970 x 870 x 950 mm |
